Jetex Modular Rotary Dehumidifier Air Conditioner Energy Saving

modular rotary dehumidifier air conditioner

energy saving rotary dehumidifier

jetex rotary dehumidifier with warranty

Place of Origin:

Guangzhou, Guangdong, China

Brand Name:

JETEX

Certification:

ISO quality system certification,CRAA

Model Number:

AHU

Request A Quote

Jetex Modular Rotary Dehumidifier Air Conditioner Energy Saving

Product Details

Air Volume:

2000m³/h-100000m³/h

Function:

Cooling, Heating, Dehumidifying, Filtering, Purifying And Sterilizing(fuctional Sections Can Be Customized )

Panel Material:

Double-layer Insulation Cotton Board, Color Steel Panel , Galvanized Steel Panel , Stainless Steel Panel

Name:

Modular Rotary Dehumidifier

Highlight:

modular rotary dehumidifier air conditioner

energy saving rotary dehumidifier

jetex rotary dehumidifier with warranty

Payment & Shipping Terms

Minimum Order Quantity

One

Price

negotiable

Packaging Details

Specialized packaging film

Delivery Time

35 work days

Payment Terms

Western Union,MoneyGram,T/T

Supply Ability

1000 units per month

Low Dew Point Rotary Dehumidifier 1000m3/H-80000m3/H Energy Saving

Get Best Price

Video

Low Dew Point Dehumidifier For Food Processing , Electronics , Aerospace Industries

Get Best Price

Video

High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries

Get Best Price

Video

Industrial Efficient Heavy Duty Desiccant Wheel Dehumidifier Drying Machine

Get Best Price

＋86 18028849848

jetex@21cn.com

86-20-34550929

Contact Now

Product Description

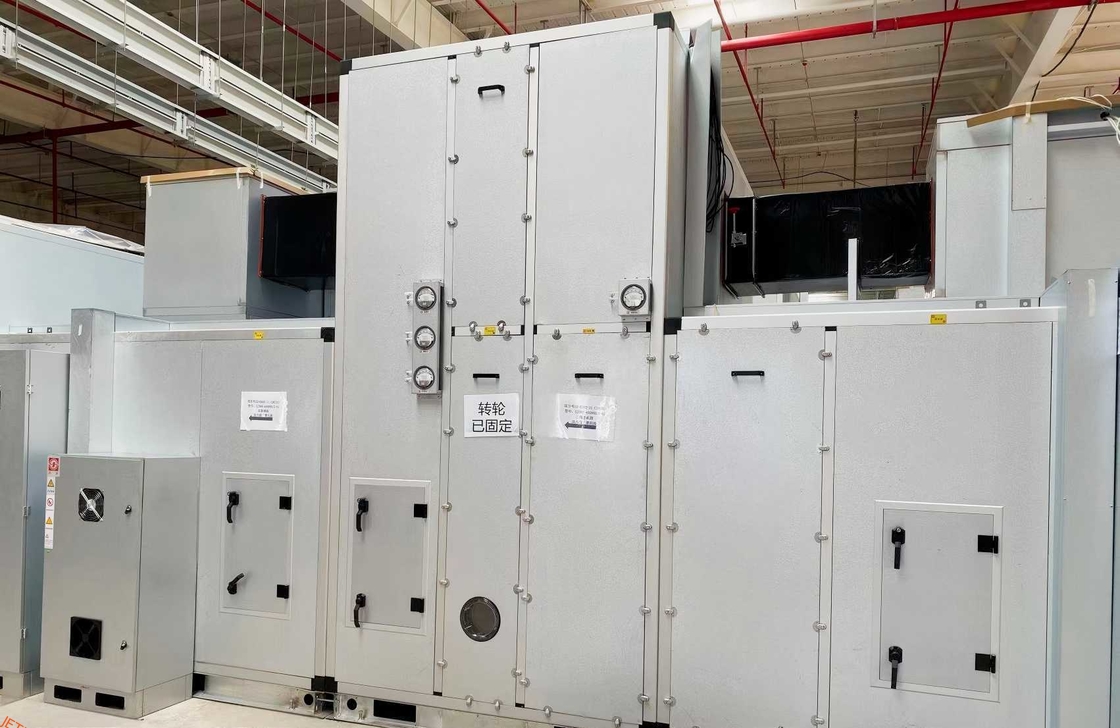

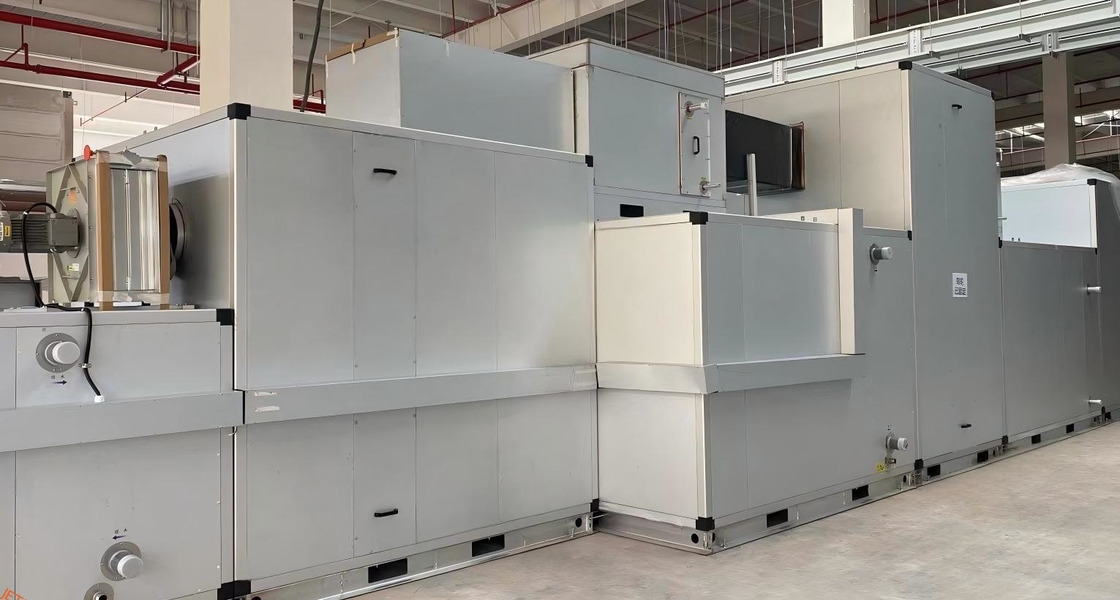

Jetex Modular Rotary Dehumidifier Air Conditioner Energy Saving

Product Specifications

Attribute	Value
Air volume	2000m³/h-100000m³/h
Function	Cooling, heating, dehumidifying, filtering, purifying and sterilizing (functional sections can be customized)
Panel material	Double-layer insulation cotton board, color steel panel, galvanized steel panel, stainless steel panel
Name	Modular Rotary Dehumidifier

Product Description

1. Structure of the Rotary Dehumidifier:

Desiccant Wheel (Rotor): The core component is a large, porous wheel made from desiccant material (like silica gel or zeolite) that absorbs moisture from the air. The wheel is divided into two sections: the process air section and the reactivation air section.
Air Inlet and Outlet: Separate air channels for the process air (needing dehumidification) and reactivation air (used to regenerate the desiccant).
Blowers/Fans: Move air through the system, with separate fans for process air and reactivation air.
Heater: Typically used to warm reactivation air to regenerate the desiccant material by releasing absorbed moisture.

2. Process Air Dehumidification:

Air Intake: Moist air from the environment is drawn into the dehumidifier through the process air inlet.
Moisture Absorption: As air passes through the rotating desiccant wheel, moisture is absorbed, resulting in dry air discharge.
Continuous Operation: The wheel rotates slowly (8-12 revolutions per hour), allowing constant dehumidification as different portions contact incoming air.

Key Benefits
