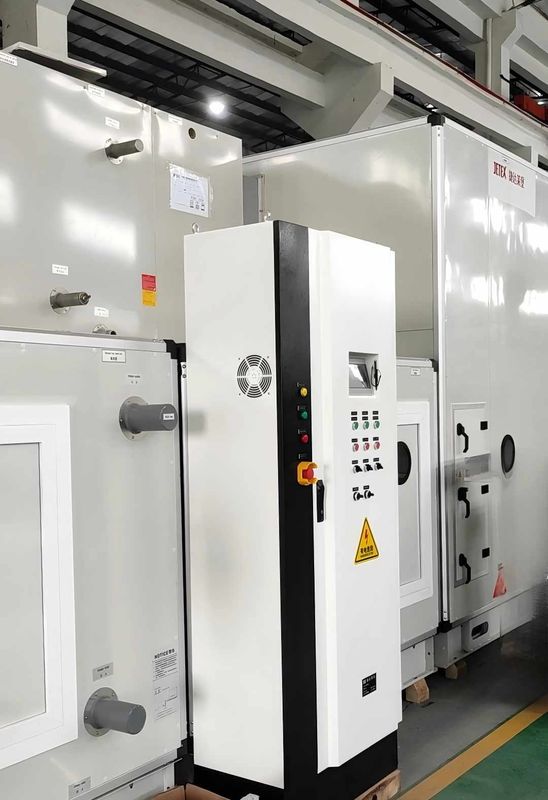

Industrial Efficient Heavy Duty Desiccant Wheel Dehumidifier Drying Machine

Name: Industrial Efficient Heavy Duty Desiccant Wheel Dehumidifier Drying Machine
Brand: GUANGZHOU JETEX-LLOYD'S MACHINERY LTD
SKU: JD Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou .China
Brand Name:	JETEX
Certification:	CRAA Certification，ISO 9001 Quality
Model Number:	JD Series

Detail Information

Place of Origin:

Guangzhou .China

Brand Name:

JETEX

Certification:

CRAA Certification，ISO 9001 Quality

Model Number:

JD Series

Filter Type:

Washable And Reusable

Factory:

China

Defrost Function:

Optional

Dew Point:

≤-40(℃)

Humidity Control Range:

35%-85%

Installation:

Floor Installation

Dehumidifying Capacity:

Can Be Customized

Frame:

Color-steel Sheet ,Galvanized Steel Sheet，stainless Steel Sheet For Selection

Trading Information

Minimum Order Quantity:

Price:

Depend on detail deisign

Supply Ability:

1000+

Product Description

A rotary wheel dehumidifier, also known as a desiccant dehumidifier, uses a rotating wheel filled with a desiccant material to remove moisture from the air. The wheel rotates slowly, continuously exposing different sections to incoming humid air, which is then dried as the desiccant absorbs the moisture.

With years of innovative technology and rich experience, JETEX company can provide customized dehumidification solutions for customers, ensuring ideal humidity in different areas such as production workshops, research and development laboratories, and warehouses, ensuring efficient production processes, stable product quality, and reliable testing data.

In addition, the JETEX's dehumidifier unit also combines energy conservation, environmental protection, and cleanliness the characteristics of not only can improve the hygiene standards of the application environment, but also ensure environmental temperature, the humidity meets the design requirements and can significantly reduce the operating costs of customers

Market Outlook Of Dehumidifier Unit

As a leading central air conditioning dehumidifier, the rotary wheel dehumidifier is widely used and has significant market potential. In China, Jetex's products can cover half of this market.

Industrial Efficient Heavy Duty Desiccant Wheel Dehumidifier Drying Machine 0

JETEX JD Series Technical Performance Parameters

Model	Treated Air			Regenration Air			Regeneration Heating Flow (Kw)	Rated Dehumidification Capacity
	Rated Air Flow (m³/h)	Fan Motor Power (Kw)	Residual Pressure (Pa)	Rated Air Flow (m³/h)	Fan Motor Power (Kw)	Residual Pressure (Pa)		Air Treatment Inlet Working Cordtion	DB13℃ /RH95℃ (kg/h)	Air Treatment Inlet Working Condition	DB23℃ /RH60℃ (kg/h)


Parameter Table of Low - dew - point Rotary Dehumidifier (Unit Dew - point Temperature: - 40℃)
JD-06K	600	0.18	300	200	0.18	300	8	4		3.35
JD-10K	1000	0.37	300	340	0.18	350	13	6.4		5.2

JD-15K	1500	0.55	350	500	0.18	250	20	11.2		9.84
JD-20K	2000	1.1	400	670	0.37	350	26	14.5		12.2
JD-25K	2500	1.5	420	840	0.55	230	33	17.2		14.25

JD-30K	3000	1.5	500	1000	0.55	310	39	22.1		18.54
JD-40K	4000	2.2	400	1340	0.55	180	52	29		24.2
JD-50K	5000	2.2	380	1670	0.75	400	65	36.8		31.5

JD-60K	6000	4	600	2000	0.75	250	78	43.4		36.4
JD-70K	7000	4	650	2340	0.75	150	91	49.8		40.7
JD-80K	8000	4	380	2670	1.5	550	104	58.9		50.4

JD-100K	10000	5.5	400	3340	1.5	300	130	72.4		60.6
JD-120K	12000	7.5	420	4000	2.2	300	155	82.5		68.4
JD-150K	15000	7.5	400	5000	3	400	194	108.5		90.9
JD-180K	18000	7.5	400	6000	4	430	233	126		104.8
JD-200K	20000	11	400	6670	5.5	680	259	144.7		121.2
JD-220K	22000	11	400	7340	5.5	450	284	156.6		130.68
JD-250K	25000	11	400	8340	5.5	310	323	180.9		151.5

Applications:

1. pharmaceutical and food Industrial, Scientific Research, Military and Municipal Engineering .etc.

Our Successful Cases

Tags:

Industrial Efficient Heavy Duty Desiccant Wheel Dehumidifier Drying Machine

Market Outlook Of Dehumidifier Unit

Applications:

1. pharmaceutical and food Industrial, Scientific Research, Military and Municipal Engineering .etc.

Our Successful Cases
