1000m3/h-100000m3/h Cabinet Centrifugal Fan Low Noise Customized

Name: 1000m3/h-100000m3/h Cabinet Centrifugal Fan Low Noise Customized
Brand: GUANGZHOU JETEX-LLOYD'S MACHINERY LTD
SKU: JFX
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, Guangdong, China
Brand Name:	JETEX-LLOYD'S
Certification:	ISO quality system certification
Model Number:	JFX

Detail Information

Place of Origin:

Guangzhou, Guangdong, China

Brand Name:

JETEX-LLOYD'S

Certification:

ISO quality system certification

Model Number:

JFX

Air Volume:

1000m³/h-100,000m³/h

Function:

Low Noise High Air Volume

Highlight:

High Light

Highlight:

Cabinet Centrifugal Fan Low Noise

100000m3/h Cabinet Type Centrifugal Fan

Centrifugal Cabinet Fan Low Noise

Trading Information

Minimum Order Quantity:

One

Price:

negotiable

Packaging Details:

Specialized packaging film

Delivery Time:

15 work days

Payment Terms:

Bank transfer

Supply Ability:

1000 units per month

Product Description

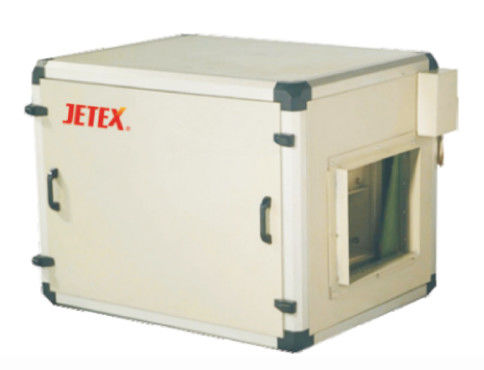

Cabinet Fire Centrifugal Fan

With double air inlet design as the core, the models include: motor built-in/external type, with excellent performance such as high residual pressure, low noise, large air volume, fire protection type, etc. The air volume range covers 1000m³/h to 100,000m³/h, and the external residual pressure is as high as 150Pa to 2000Pa or more. This product is widely used in air conditioning ventilation and fire smoke exhaust systems in industrial and commercial buildings, hotels, theaters, hospitals, factories and other places, especially in clean engineering systems.
According to the functional division, this series includes standard cabinet centrifugal fans and fire-fighting special types, the latter only provides motor external specifications. By flexibly adjusting the volute, air inlet and outlet direction, a variety of air inlet and outlet combinations can be achieved to ensure efficient and stable operation of the system

Model No	JFX-07-JFX-40
Air volume	1000m³/h-100,000m³/h
Panel material	Double-layer insulation cotton board, color steel plate, galvanized steel plate, stainless steel plate
Cooling capacity	/
Product features	High residual pressure low noise high air volume
Heating capacity	/
Humidification capacity	/
Motor power	0.55KW-0.75KW
Pressure	150Pa-200Pa
Power supply	380V/3PH/50HZ
Cooling water coil	/
size	Customizable
