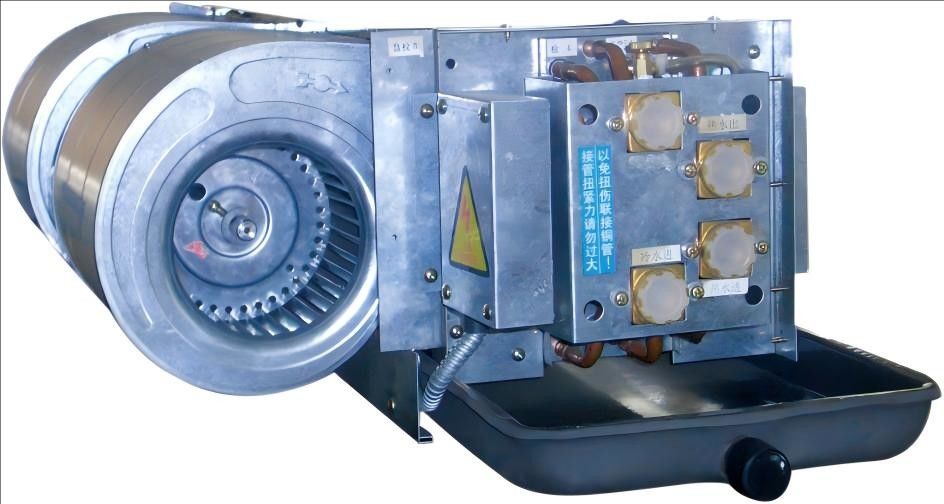

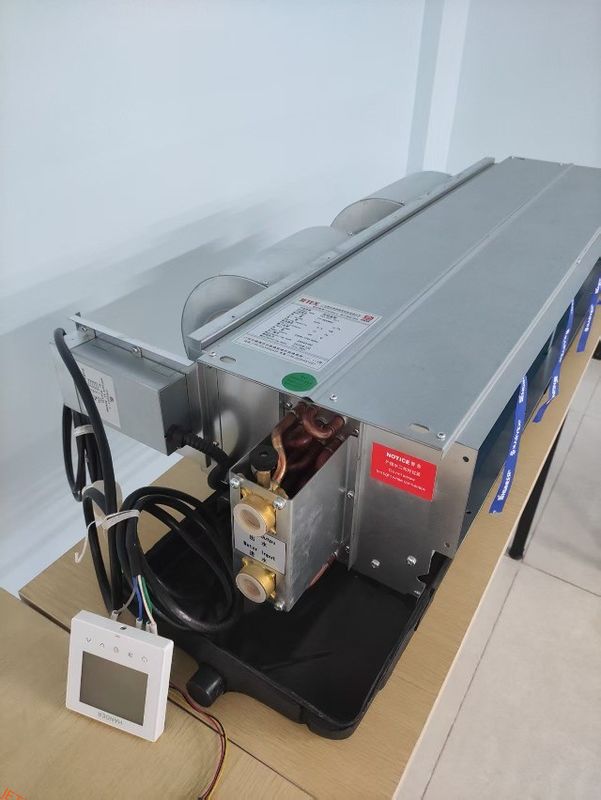

A fan coil unit (FCU), also known as a Vertical Fan Coil Unit (VFCU), is a device consisting of a heat exchanger (coil) and a fan. FCUs are commonly used in HVAC systems of residential, commercial, and industrial buildings that use ducted split air conditioning or central plant cooling. FCUs are typically connected to ductwork and a thermostat to regulate the temperature of one or more spaces and to assist the main air handling unit for each space if used with chillers. The thermostat controls the fan speed and/or the flow of water or refrigerant to the heat exchanger using a control valve.
Features:
- Ducted Fan Coil Unit
- FCU Fan Coil Unit
- Heater Coil
- Product Name: Fan coil unit
- Coil Rows: 4 Rows ---- 3 Rows
- Motor: Single Phase Capacitive Motor
- Fan: Double Inlet Centrifugal Fan
- Power Supply: 220V, 50Hz
- Drain Pipe: 3/4"
- OPTIONAL
♦ Electric heater(PTC)
♦ Return air box
♦ DC brushless motor
Technical Parameters:
Model
ltem |
FP-200
(FP-34) |
FP-300
(FP-51) |
FP-400
(FP-68) |
FP-500
(FP-85) |
FP-600
(FP-102) |
FP-800
(FP-136) |
FP-1000
(FP-170) |
FP-1200
(FP-204) |
FP-1400
(FP-238) |
Standard Air
Volume(m³h) |
H |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
| M |
255 |
382 |
510 |
638 |
765 |
1020 |
1275 |
1530 |
1785 |
| L |
170 |
255 |
340 |
425 |
510 |
680 |
850 |
1020 |
1190 |
| (W)Cooling Capacity |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
| (W)Heating Capacity |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
| PTC(optional) |
power(KW) |
1.5 |
2.0 |
2.5 |
3.0 |
3.0 |
4.5 |
4.5 |
6.0 |
6.0 |
| Electric current (A) |
6.8 |
9.1 |
11.4 |
13.7 |
13.7 |
20.5 |
20.5 |
27.3 |
27.3 |
Static Pressure(Pa) |
S |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
| E |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
50 |
50 |
Noise Level(dB(A)) |
S |
≤37 |
≤39 |
≤41 |
≤43 |
≤45 |
≤46 |
≤48 |
≤50 |
≤52 |
|
| E |
≤40 |
≤42 |
≤44 |
≤46 |
≤47 |
≤48 |
≤50 |
≤54 |
≤56 |
|
Coil |
Type |
High-purity Copper Tubes And Aluminium Cooling Fins |
Water Flow(1000kg/h) |
0.34 |
0.50 |
0.66 |
0.81 |
0.96 |
1.28 |
1.61 |
1.92 |
2.18 |
Pressure Drop(KPa) |
30 |
30 |
30 |
30 |
40 |
40 |
40 |
40 |
50 |
| Max Working Press(MPa) |
1.6 |
Motor
|
Power Input |
S |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
| E |
44 |
59 |
72 |
87 |
108 |
156 |
174 |
250 |
300 |
| Quantity |
1 |
2 |
Fan |
Type |
Double Inlet Centrifugal Fan |
| Quantity |
1 |
2 |
3 |
4 |
Notes:
1.Refrigeration conditions: DB=27℃, WB=19.5℃, TW₁=7℃, △TW=5℃; Heating conditions: DB=21℃, TW₁=60℃, △TW=10℃.
2.Cooling and heating capacities are values at high speed. At medium air volume, they are approximately 84% of the values in the table; at low air volume, approximately 74%.
3.The coil is a 3-row tube with a fin density of 12 fins per inch. For other types such as 2-row tubes, please specify separately.
4.The noise values must be tested under conditions conforming to the relevant requirements in the national standard GB-T19232-2003.
5.The motor nameplate power of this product is the output power, while the power shown in the table above is the motor input power. Please note!
6.In the model numbers above, the digits in parentheses represent the high-speed air volume: quantity ×10 m³/h. Example: FP-34 has an air volume of 340 m³/h.
Applications:
JETEX Fan Coil Units are versatile HVAC products suitable for a wide range of applications in various settings. These Indoor Fan Coil Units are designed to provide efficient cooling and heating solutions in both residential and commercial spaces. The FP-200 to FP-1400 models offer a diverse range of options to cater to different room sizes and cooling requirements.
FAQ:
Q: What is the brand of the fan coil unit?
A: The brand of the fan coil unit is JETEX.
Q: What are the available model numbers for the fan coil unit?
A: The available model numbers range from FP-200 to FP-1400.
Q: Where is the fan coil unit manufactured?
A: The fan coil unit is manufactured in Guangzhou, China.
Q: Can the fan coil unit be used for both residential and commercial purposes?
A: Yes, the fan coil unit is suitable for both residential and commercial applications.
Q: What kind of warranty is provided for the fan coil unit?
A: For warranty-related information, please refer to the warranty policy provided by the manufacturer.
