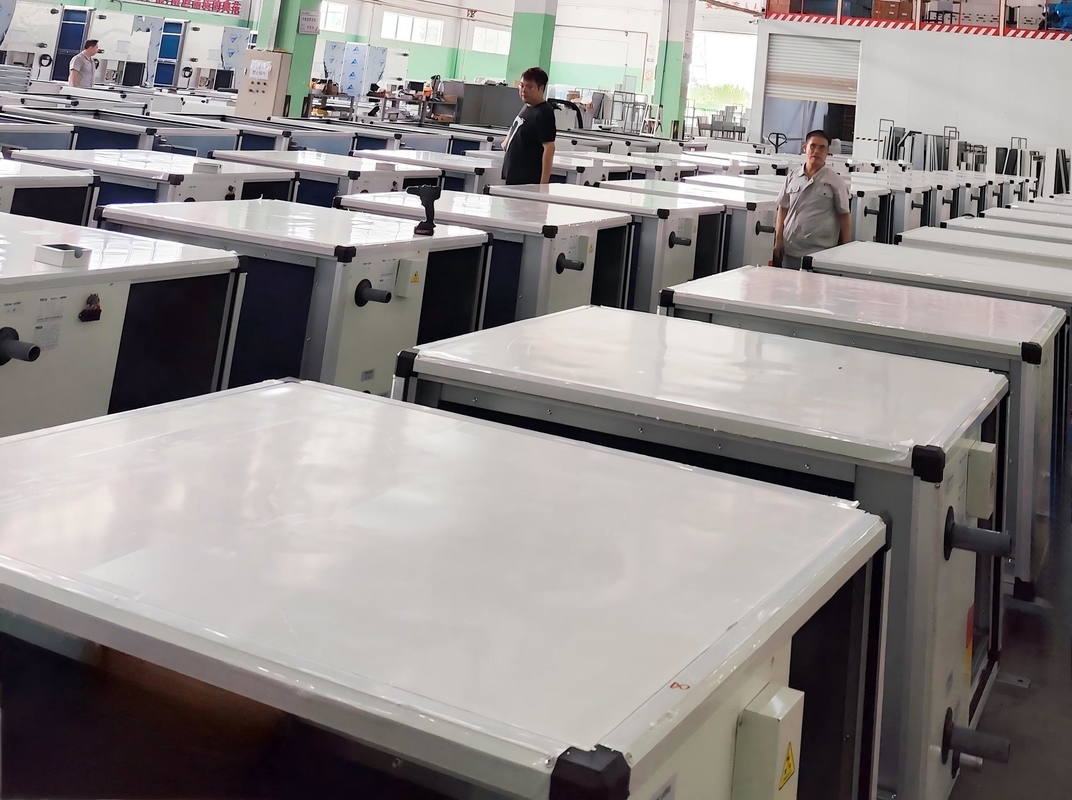

Ceiling Type AHU with Cooling Heating for Commercial Spaces

MOQ: 1
Price: From $440
Standard Packaging: Wooden Pallet With Outer Film Wrapping
Delivery Period: Delivery Time: 25~30 Days
Payment Method: For Customized Product,30% Deposit Required,70% Balance Payable Prior To Shipment
Supply Capacity: 1000+
Detail Information
Product Description
Detail Information
Place of Origin
Panyu.GuangZhou
Brand Name
JETEX
Certification
ISO 9001:2015 Certification
Model Number
5WCAHU15-600
Belt Pulley:
Taper Bushing Pulleys.
Type:
Ceiling Type Ahu
Packaging:
Wooden Pallet With Outer Film Wrapping
Function:
Dehumidification,cooling，heating， Ventilation
Insulation:
Foam Insulation
Fan:
Brand Fan
Rows:
4-Rows,6 Rows,8 Rows.
Highlight:

commercial ceiling type AHU

,

cooling heating air handling unit

,

ceiling mounted AHU for commercial

Product Description
Cabinet AHU With Cooling And Heating Functions For Hotel, Shopping Mall And Office
Product Attributes
Attribute Value
Belt pulley Taper Bushing Pulleys
Type Ceiling type AHU
Packaging Wooden Pallet With Outer Film Wrapping
Function Dehumidification, cooling, heating, ventilation
Insulation Foam Insulation
Fan Brand Fan
Rows 4-Rows, 6 rows, 8 rows
Product Overview

JETEX AHU (Air Handling Unit) draws on the advantages of world-renowned products from Europe, the United States, Japan and other regions. Combining modern air conditioning system design characteristics with current development trends, we've developed high-quality products to meet various needs.

A Ceiling-mounted Cabinet AHU (Air Handling Unit) is a compact, self-contained air treatment device designed for installation within ceiling cavities or above suspended ceilings. This specialized cabinet-style AHU integrates core components—including fans, filters, heat exchangers (for heating/cooling), humidifiers/dehumidifiers, and control modules—into a single enclosed structure.

Key Features
  • Primary function: Conditions air by filtering contaminants and adjusting temperature/humidity
  • Processes a mix of fresh outdoor air and recirculated indoor air
  • Distributes treated air via ductwork connected to ceiling diffusers
  • Wall panel options: Single-panel and double-panel
  • Coil row configurations: 4-rows, 6-rows, and 8-rows
  • Air volume range: 2000m³/h - 100000m³/h
  • Convenient snap-fastened access door
Key Benefits
  • Space efficiency: Compact structure saves valuable space
  • Aesthetic integration: Concealed installation maintains visual appeal
  • Comprehensive functionality: Filters, heats, cools, humidifies, and dehumidifies air
  • Flexible configuration: Adaptable for single floors or independent zones
  • Low-noise operation: Enhanced user experience
Applications

Ideal for commercial settings including offices, hotels, and retail spaces where compact, unobtrusive air handling is prioritized.

5WC Ceiling Type AHU Performance Data (4 rows)
No. Product Name Model Airflow (m3/h) Residual Pressure (Pa) RA Condition FA Condition
Cooling capacity (Kw) Cooling capacity (Ton) Cooling capacity (Kw) Cooling capacity (Ton)
1 Ceiling type AHU 5WC-20 2000 250 11.36 3.23 24.15 6.87
2 Ceiling type AHU 5WC-25 2500 250 14.20 4.04 30.19 8.59
3 Ceiling type AHU 5WC-30 3000 350 16.81 4.78 35.74 10.16
4 Ceiling type AHU 5WC-35 3500 350 19.88 5.65 42.26 12.02
5 Ceiling type AHU 5WC-40 4000 350 22.72 6.46 48.30 13.74
6 Ceiling type AHU 5WC-45 4500 350 25.56 7.27 54.34 15.45
7 Ceiling type AHU 5WC-50 5000 350 28.40 8.08 60.38 17.17
8 Ceiling type AHU 5WC-60 6000 350 34.08 9.69 72.45 20.60
9 Ceiling type AHU 5WC-70 7000 400 39.76 11.31 84.53 24.04
10 Ceiling type AHU 5WC-80 8000 400 45.44 12.92 96.61 27.48
11 Ceiling type AHU 5WC-90 9000 400 55.00 15.64 116.93 33.25
12 Ceiling type AHU 5WC-100 10000 400 60.20 17.12 132.00 37.54
13 Ceiling type AHU 5WC-120 12000 450 70.20 19.96 149.25 42.45
14 Ceiling type AHU 5WC-140 14000 450 81.90 23.29 174.12 49.52
For product parameters of larger air volume, please contact our online sales team.
Specification parameters may change due to product improvements without prior notice. Please refer to actual unit parameters.
