High-Efficiency Modular Rotary Desiccant Dehumidifier For lithium Battery Industry

modular rotary desiccant dehumidifier

high-efficiency rotary dehumidifier

lithium battery dehumidifier

Place of Origin:

Guangzhou, Guangdong, China

Brand Name:

JETEX

Certification:

ISO quality system certification,CRAA

Model Number:

AHU

Request A Quote

High-Efficiency Modular Rotary Desiccant Dehumidifier For lithium Battery Industry

Product Details

Air Volume:

2000m³/h-100000m³/h

Function:

Cooling, Heating, Dehumidifying, Filtering, Purifying And Sterilizing(fuctional Sections Can Be Customized )

Panel Material:

Double-layer Insulation Cotton Board, Color Steel Panel , Galvanized Steel Panel , Stainless Steel Panel

Name:

Modular Rotary Dehumidifier

Highlight:

modular rotary desiccant dehumidifier

high-efficiency rotary dehumidifier

lithium battery dehumidifier

Payment & Shipping Terms

Minimum Order Quantity

One

Price

negotiable

Packaging Details

Specialized packaging film

Delivery Time

35 work days

Payment Terms

Western Union,MoneyGram,T/T

Supply Ability

1000 units per month

Pharmaceutical Rotary Wheel Dehumidifier High Hygrospic Air Handler

Get Best Price

Jetex Modular Rotary Dehumidifier Air Handling Unit Energy Saving

Get Best Price

Stainless Casing Precise Dehumidier For Food Indrustry Humidity Control Solutions

Get Best Price

Video

Jetex Low Dew Point Rotary Dehumidifier Large Desiccant Equipment

Get Best Price

＋86 18028849848

jetex@21cn.com

86-20-34550929

Contact Now

Product Description

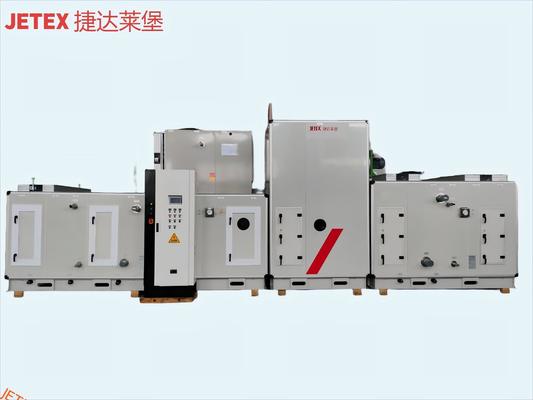

High-Efficiency Modular Rotary Desiccant Dehumidifier For Lithium Battery Industry

Jetex Modular Rotary Desiccant Dehumidifier for lithium battery industry uses a revolving desiccant wheel to adsorb moisture from the air, creating ultra-low humidity environments (dew points of ≤ -40°C) necessary for sensitive battery components and electrolytes to prevent degradation and ensure product safety.

Product Specifications

Attribute	Value
Air volume	2000m³/h-100000m³/h
Function	Cooling, heating, dehumidifying, filtering, purifying and sterilizing (functional sections can be customized)
Panel material	Double-layer insulation panel with polyurethane foam fitting, color-coated steel sheet, galvanized steel sheet, stainless steel sheet (optional)
Name	Modular Rotary Desiccant Dehumidifier

Product Description

1. Structure of the Rotary Dehumidifier:

Desiccant Wheel (Rotor): The core component is a large, porous wheel made from desiccant material (like silica gel or zeolite) that absorbs moisture from the air. The wheel is divided into two sections: the process air section and the reactivation air section.
Air Inlet and Outlet: Separate air channels for the process air (needing dehumidification) and reactivation air (used to regenerate the desiccant).
Blowers/Fans: Move air through the system, with separate fans for process air and reactivation air.
Heater: Typically used to warm reactivation air to regenerate the desiccant material by releasing absorbed moisture.

2. Process Air Dehumidification:

Air Intake: Moist air from the environment is drawn into the dehumidifier through the process air inlet.
Moisture Absorption: As air passes through the rotating desiccant wheel, moisture is absorbed, resulting in dry air discharge.
Continuous Operation: The wheel rotates slowly (8-12 revolutions per hour), allowing constant dehumidification as different portions contact incoming air.

Industrial Applications

Lithium Battery Industry, Biotechnology Pharmaceutical Industry
Chemical, Daily Chemical Industry, Food Beverage Industry
Scientific Research, Electric Power Transportation
Safety Glazing Material Industry, Tyre and Rubber Industry
Medical Instrument, Vegetables Frozen, Precise Instrument
Wood Goods, Shipbuilding Painting Industry, Various Storage Facilities

Internal components of Rotary Dehumidifier

Industrial application of Rotary Dehumidifier

Production Lead Time

Quantity (units)	1 - 1	> 1
Lead time (days)	35	To be negotiated

Customization Options

Customized logo (Minimum order: 1 unit)
Customized packaging (Minimum order: 1 unit)
Project solution (Minimum order: 1 unit)
