Custom-build Central Air Handling Unit For Industrial High Efficiency Water Cooled Type AHU

Modular Custom Make, Double-Wall Indoor, Outdoor Application 1500 - 100000 Nominal CFM

Jetex AHS series Air Handler Units come with more than 30 different standard sizes. They combine versatility with economical, dependable performance for heating, cooling, ventilation, and VAV (variable air volume) and hygienic applications.

The construction consists of a frame and panels. Profiled 0.5mm thick casing sides of galvanized and coated steel plates ensure a rigid and lightweight frame. The frame holds a 50-mm dual-skin casing wall with panels, doors, inspection hatches and removable center posts. The casing wall construction comes in several versions of steel plate thicknesses, material types and insulation materials used.

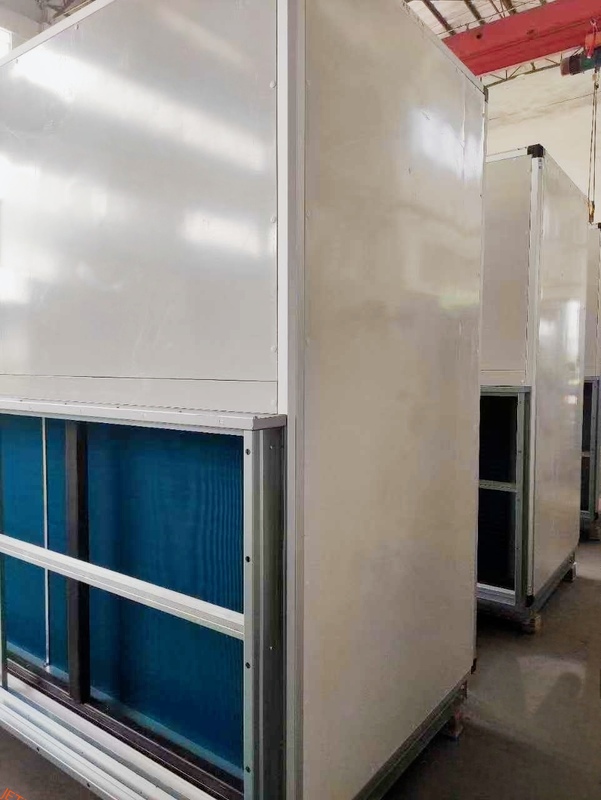

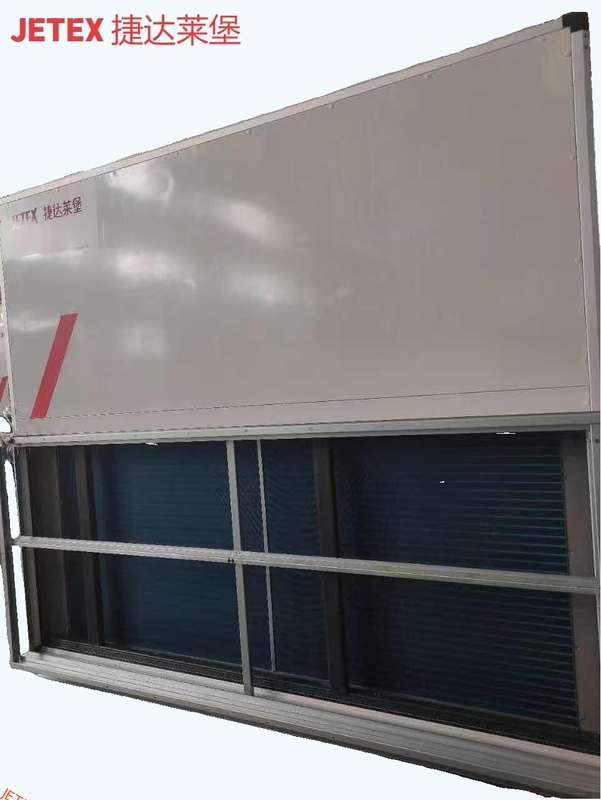

Water-cooled Modular Air Handling Unit (AHU)

The water-cooled modular air handling unit is designed to handle, cool, heat, filter, and distribute air efficiently in central air conditioning systems. It utilizes chilled water or hot water as the cooling and heating medium, ensuring stable performance and energy-efficient operation.

The unit adopts a modular design, allowing flexible configuration of different functional sections — such as the mixing section, filter section, cooling coil, heating coil, humidification section, fan section, and silencer section — according to project requirements.

The water-cooled AHU is widely applied in commercial buildings, factories, hospitals, clean rooms, laboratories, and other areas requiring large air volumes and reliable temperature and humidity control.

Key Features:

Modular structure: easy transportation, installation, and maintenance.

Water-cooled coils: high heat exchange efficiency and long service life.

Flexible configuration: customizable to different air volumes and applications.

Thermal and acoustic insulation: ensures quiet and stable operation.

High-quality casing: galvanized steel or color steel panels with polyurethane insulation.

Optional sections: heat recovery, humidification, fresh air intake, etc.

Our technical team assists in selecting optimal AHU configurations based on your project's specific requirements. Proper parameter selection by designers is crucial for system efficiency and performance.

• Horizontal or vertical arrangements
• Stainless steel Casing
• Filter kits
• Pre filter
• Hepa filter
• Stainless steel condensate drain pan
• Chilled water coils
• Hot water coils
• DX coils
• Steam coils
• Electric heater
• Copper coils
• Copper header
• Coil face area, fin density, and circuiting arrangement options
• Blower motor and belt drive package
• Heat Wheel
• Plate Type Heat Exchangers
• Heat Pipes for Heat recovery

• 30+ years of R&D, manufacturing, and sales expertise
• Full OEM capability for custom solutions
• 10,000 sq.m production facilities
• Certified National High-Tech Enterprise
• Trusted supplier for Foxconn and other industry leaders
