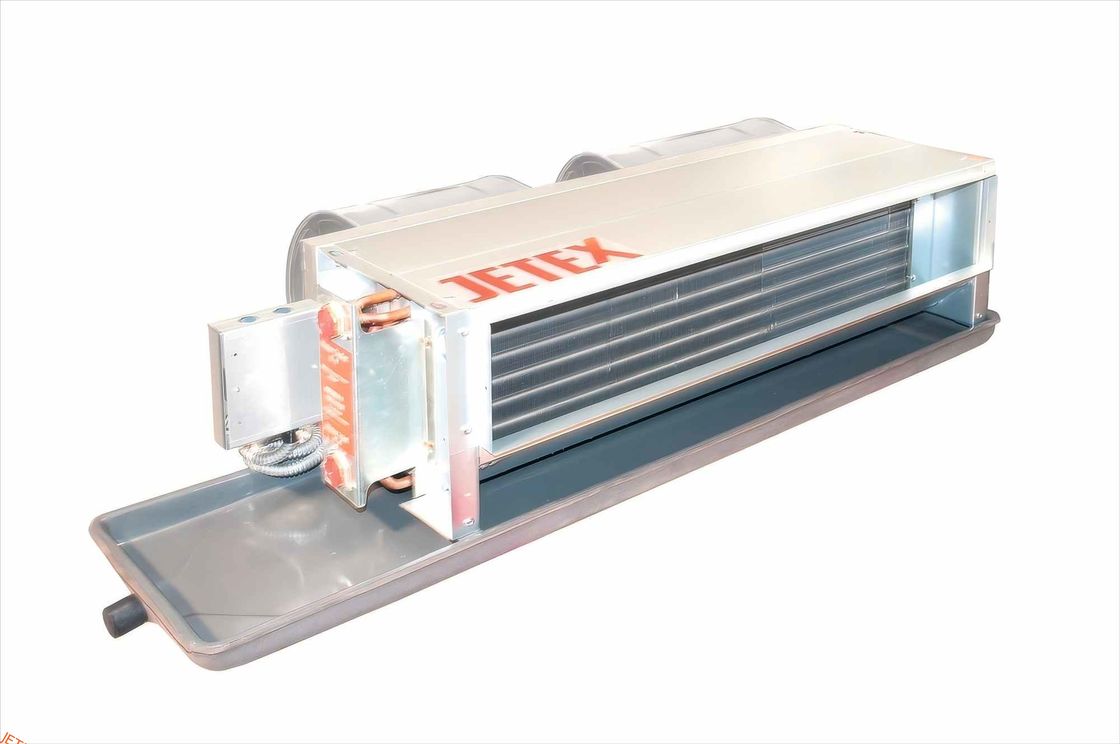

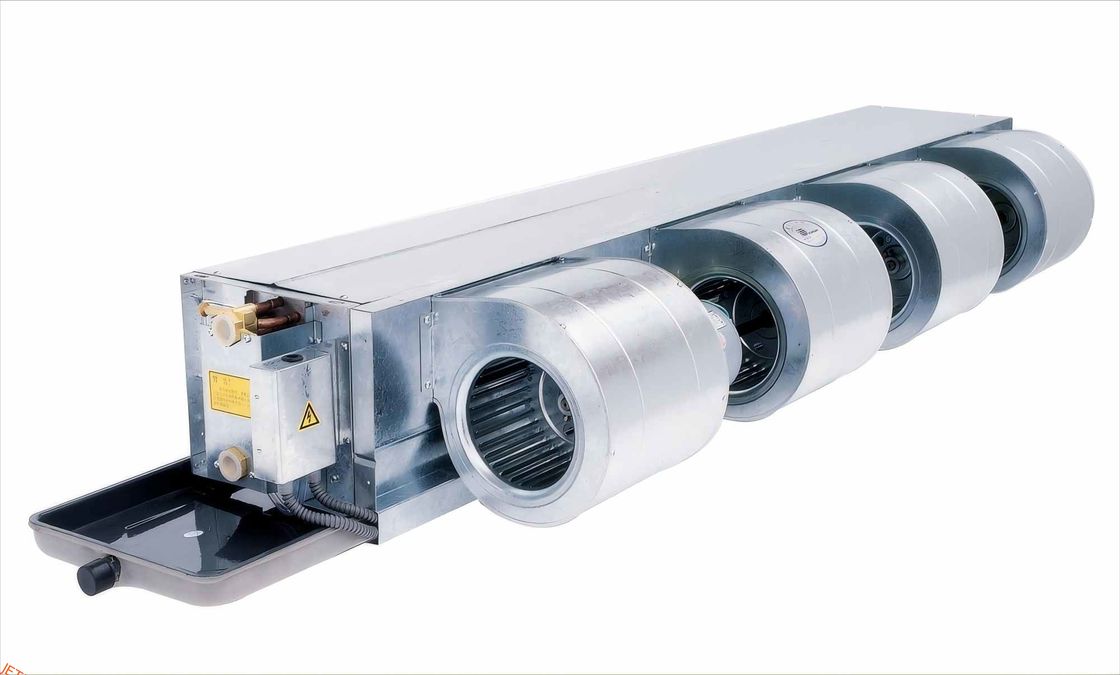

A fan coil unit (FCU), also known as a Vertical Fan Coil Unit (VFCU), is a device consisting of a heat exchanger (coil) and a fan. FCUs are commonly used in HVAC systems of residential, commercial, and industrial buildings that use ducted split air conditioning or central plant cooling.
In summary, the Indoor Fan Coil Unit is a reliable cooling fan system that offers flexibility in installation options, high-quality coil construction, and efficient drainage capabilities. Whether you require a cooling solution for a commercial space, residential area, or industrial facility, this FCU unit provides a versatile and effective cooling solution.
Features:
- Coil:The unique coil design effectively promotes the mixing of hot and cold air, thereby enhancing heat transfer efficiency and reducing the operating costs of the air-conditioning system.
- Fan:low-speed forward-curved multi-blade wide impeller centrifugal fan
- Overall Die Condensate Tray:Formed by one-time stamping, with internal and external electrostatic spraying.
- Motor:equipped with a high-quality single-phase, three-speed capacitor motor.
- Ducted Fan Coil Unit: High-purity Copper Tubes And Aluminum Cooling Fins
- Mounted type: Horizontal/Vertical/Ceiling Mounted
- Drain pipe: 3/4"
Technical Parameters:
Model
ltem |
FP-200
(FP-34) |
FP-300
(FP-51) |
FP-400
(FP-68) |
FP-500
(FP-85) |
FP-600
(FP-102) |
FP-800
(FP-136) |
FP-1000
(FP-170) |
FP-1200
(FP-204) |
FP-1400
(FP-238) |
Standard Air
Volume(m³h) |
H |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
| M |
255 |
382 |
510 |
638 |
765 |
1020 |
1275 |
1530 |
1785 |
| L |
170 |
255 |
340 |
425 |
510 |
680 |
850 |
1020 |
1190 |
| (W)Cooling Capacity |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
| (W)Heating Capacity |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
| PTC(optional) |
power(KW) |
1.5 |
2.0 |
2.5 |
3.0 |
3.0 |
4.5 |
4.5 |
6.0 |
6.0 |
| Electric current (A) |
6.8 |
9.1 |
11.4 |
13.7 |
13.7 |
20.5 |
20.5 |
27.3 |
27.3 |
Static Pressure(Pa) |
S |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
| E |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
50 |
50 |
Noise Level(dB(A)) |
S |
≤37 |
≤39 |
≤41 |
≤43 |
≤45 |
≤46 |
≤48 |
≤50 |
≤52 |
|
| E |
≤40 |
≤42 |
≤44 |
≤46 |
≤47 |
≤48 |
≤50 |
≤54 |
≤56 |
|
Coil |
Type |
High-purity Copper Tubes And Aluminium Cooling Fins |
Water Flow(1000kg/h) |
0.34 |
0.50 |
0.66 |
0.81 |
0.96 |
1.28 |
1.61 |
1.92 |
2.18 |
Pressure Drop(KPa) |
30 |
30 |
30 |
30 |
40 |
40 |
40 |
40 |
50 |
| Max Working Press(MPa) |
1.6 |
Motor
|
Power Input |
S |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
| E |
44 |
59 |
72 |
87 |
108 |
156 |
174 |
250 |
300 |
| Quantity |
1 |
2 |
Fan |
Type |
Double Inlet Centrifugal Fan |
| Quantity |
1 |
2 |
3 |
4 |
Notes:
1.Refrigeration conditions: DB=27℃, WB=19.5℃, TW₁=7℃, △TW=5℃; Heating conditions: DB=21℃, TW₁=60℃, △TW=10℃.
2.Cooling and heating capacities are values at high speed. At medium air volume, they are approximately 84% of the values in the table; at low air volume, approximately 74%.
3.The coil is a 3-row tube with a fin density of 12 fins per inch. For other types such as 2-row tubes, please specify separately.
4.The noise values must be tested under conditions conforming to the relevant requirements in the national standard GB-T19232-2003.
5.The motor nameplate power of this product is the output power, while the power shown in the table above is the motor input power. Please note!
6.In the model numbers above, the digits in parentheses represent the high-speed air volume: quantity ×10 m³/h. Example: FP-34 has an air volume of 340 m³/h.
Applications:
Jetex fan coil unit products are widely applied in central air-conditioning systems of hotels, commercial office buildings, hospitals, exhibition halls, etc. The units are carefully designed by absorbing the advantages of similar products at home and abroad, and manufactured using advanced processing technology. Featuring beautiful appearance, compact structure, low noise, and large cooling capacity, the products have been highly praised by users for many years.
Whether you are looking to upgrade your home HVAC system or need a reliable heating and cooling solution for a commercial space, the JETEX Fan Coil Unit is a versatile and efficient choice. Trust in the quality and performance of JETEX products to keep your space comfortable all year round.
FAQ:
Q: What is the brand name of this Fan coil unit?
A: The brand name is JETEX.
Q: Where is this Fan coil unit manufactured?
A: This Fan coil unit is manufactured in Guangzhou, China.
Q: What are the model numbers available for this Fan coil unit?
A: The model numbers available are FP-200, FP-400, FP-600, FP-800, FP-1000, FP-1200, and FP-1400.
Q: Does this Fan coil unit come with a warranty?
A: For warranty information, please refer to the warranty policy provided with the product.
Q: How can I purchase this Fan coil unit?
A: You can purchase this Fan coil unit through authorized distributors or directly from the manufacturer's website.
