A Chilled Water Fan Coil Unit is an essential component of a coil cooling system, designed to efficiently cool or heat indoor spaces by circulating chilled water or hot water through high-purity copper tubes and aluminum cooling fins. This particular fan coil unit is available in three mounted types - horizontal, vertical, and ceiling mounted, to suit different installation requirements.

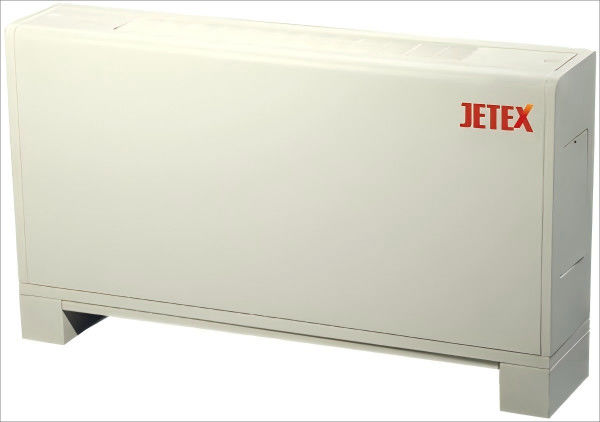

JETEX exposed Vertical type FCU have 2 series ,the side-wind outlet series and the top-wind outlet series.The picture shows the top-wind outlet series.
Features:
- Coil:The unique coil design effectively promotes the mixing of hot and cold air, thereby enhancing heat transfer efficiency and reducing the operating costs of the air-conditioning system.
- Fan:low-speed forward-curved multi-blade wide impeller centrifugal fan
- Overall Die Condensate Tray:Formed by one-time stamping, with internal and external electrostatic spraying.
- Motor:equipped with a high-quality single-phase, three-speed capacitor motor.
- Ducted Fan Coil Unit: High-purity Copper Tubes And Aluminum Cooling Fins
- Mounted type: Horizontal/Vertical/Ceiling Mounted
- Drain pipe: 3/4"
Technical Parameters:
Model
ltem |
FP-200
(FP-34) |
FP-300
(FP-51) |
FP-400
(FP-68) |
FP-500
(FP-85) |
FP-600
(FP-102) |
FP-800
(FP-136) |
FP-1000
(FP-170) |
FP-1200
(FP-204) |
FP-1400
(FP-238) |
Standard Air
Volume(m³h) |
H |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
| M |
255 |
382 |
510 |
638 |
765 |
1020 |
1275 |
1530 |
1785 |
| L |
170 |
255 |
340 |
425 |
510 |
680 |
850 |
1020 |
1190 |
| (W)Cooling Capacity |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
| (W)Heating Capacity |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
| PTC(optional) |
power(KW) |
1.5 |
2.0 |
2.5 |
3.0 |
3.0 |
4.5 |
4.5 |
6.0 |
6.0 |
| Electric current (A) |
6.8 |
9.1 |
11.4 |
13.7 |
13.7 |
20.5 |
20.5 |
27.3 |
27.3 |
Static Pressure(Pa) |
S |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
| E |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
50 |
50 |
Noise Level(dB(A)) |
S |
≤37 |
≤39 |
≤41 |
≤43 |
≤45 |
≤46 |
≤48 |
≤50 |
≤52 |
|
| E |
≤40 |
≤42 |
≤44 |
≤46 |
≤47 |
≤48 |
≤50 |
≤54 |
≤56 |
|
Coil |
Type |
High-purity Copper Tubes And Aluminium Cooling Fins |
Water Flow(1000kg/h) |
0.34 |
0.50 |
0.66 |
0.81 |
0.96 |
1.28 |
1.61 |
1.92 |
2.18 |
Pressure Drop(KPa) |
30 |
30 |
30 |
30 |
40 |
40 |
40 |
40 |
50 |
| Max Working Press(MPa) |
1.6 |
Motor
|
Power Input |
S |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
| E |
44 |
59 |
72 |
87 |
108 |
156 |
174 |
250 |
300 |
| Quantity |
1 |
2 |
Fan |
Type |
Double Inlet Centrifugal Fan |
| Quantity |
1 |
2 |
3 |
4 |
Notes:
1.Refrigeration conditions: DB=27℃, WB=19.5℃, TW₁=7℃, △TW=5℃; Heating conditions: DB=21℃, TW₁=60℃, △TW=10℃.
2.Cooling and heating capacities are values at high speed. At medium air volume, they are approximately 84% of the values in the table; at low air volume, approximately 74%.
3.The coil is a 3-row tube with a fin density of 12 fins per inch. For other types such as 2-row tubes, please specify separately.
4.The noise values must be tested under conditions conforming to the relevant requirements in the national standard GB-T19232-2003.
5.The motor nameplate power of this product is the output power, while the power shown in the table above is the motor input power. Please note!
6.In the model numbers above, the digits in parentheses represent the high-speed air volume: quantity ×10 m³/h. Example: FP-34 has an air volume of 340 m³/h.
