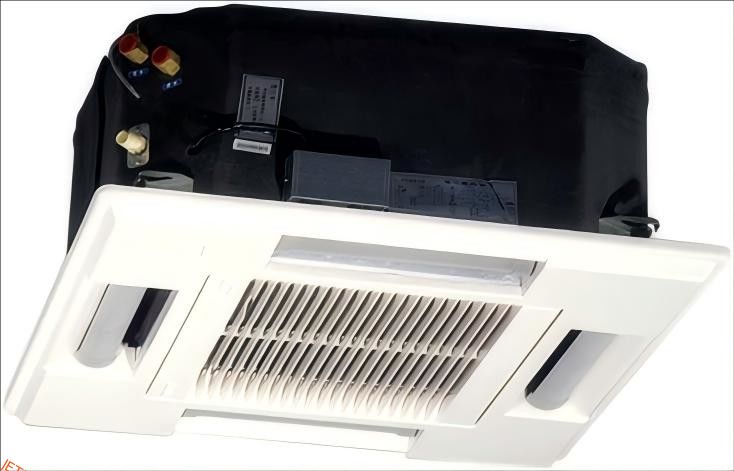

A fan coil unit is an essential component of a coil cooling air conditioner system, designed to provide efficient heating and cooling for various spaces. Cassette FCU is a kind of commercial air conditioner, which is mostly used in offices and shopping malls.
Features:
1. The appearance of the unit is luxurious, the installation does not occupy effective indoor space, and it is harmoniously matched with the environment;
2. The unit sends air from all sides to increase comfort;
3. The use of a three-dimensional spiral wind cabinet makes the equipment operation noise lower.
- Coil:The unique coil design effectively promotes the mixing of hot and cold air, thereby enhancing heat transfer eficiency and reducing the operating costs of the air-conditioning system.
- Fan:low-speed forward-curved multi-blade wide impeller centrifugal fan
Technical Parameters:
Model
ltem |
FP-200
(FP-34) |
FP-300
(FP-51) |
FP-400
(FP-68) |
FP-500
(FP-85) |
FP-600
(FP-102) |
FP-800
(FP-136) |
FP-1000
(FP-170) |
FP-1200
(FP-204) |
FP-1400
(FP-238) |
Standard Air
Volume(m³h) |
H |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
| M |
255 |
382 |
510 |
638 |
765 |
1020 |
1275 |
1530 |
1785 |
| L |
170 |
255 |
340 |
425 |
510 |
680 |
850 |
1020 |
1190 |
| (W)Cooling Capacity |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
| (W)Heating Capacity |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
| PTC(optional) |
power(KW) |
1.5 |
2.0 |
2.5 |
3.0 |
3.0 |
4.5 |
4.5 |
6.0 |
6.0 |
| Electric current (A) |
6.8 |
9.1 |
11.4 |
13.7 |
13.7 |
20.5 |
20.5 |
27.3 |
27.3 |
Static Pressure(Pa) |
S |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
| E |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
50 |
50 |
Noise Level(dB(A)) |
S |
≤37 |
≤39 |
≤41 |
≤43 |
≤45 |
≤46 |
≤48 |
≤50 |
≤52 |
|
| E |
≤40 |
≤42 |
≤44 |
≤46 |
≤47 |
≤48 |
≤50 |
≤54 |
≤56 |
|
Coil |
Type |
High-purity Copper Tubes And Aluminium Cooling Fins |
Water Flow(1000kg/h) |
0.34 |
0.50 |
0.66 |
0.81 |
0.96 |
1.28 |
1.61 |
1.92 |
2.18 |
Pressure Drop(KPa) |
30 |
30 |
30 |
30 |
40 |
40 |
40 |
40 |
50 |
| Max Working Press(MPa) |
1.6 |
Motor
|
Power Input |
S |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
| E |
44 |
59 |
72 |
87 |
108 |
156 |
174 |
250 |
300 |
| Quantity |
1 |
2 |
Fan |
Type |
Double Inlet Centrifugal Fan |
| Quantity |
1 |
2 |
3 |
4 |
Notes:
1.Refrigeration conditions: DB=27℃, WB=19.5℃, TW₁=7℃, △TW=5℃; Heating conditions: DB=21℃, TW₁=60℃, △TW=10℃.
2.Cooling and heating capacities are values at high speed. At medium air volume, they are approximately 84% of the values in the table; at low air volume, approximately 74%.
3.The coil is a 3-row tube with a fin density of 12 fins per inch. For other types such as 2-row tubes, please specify separately.
4.The noise values must be tested under conditions conforming to the relevant requirements in the national standard GB-T19232-2003.
5.The motor nameplate power of this product is the output power, while the power shown in the table above is the motor input power. Please note!
6.In the model numbers above, the digits in parentheses represent the high-speed air volume: quantity ×10 m³/h. Example: FP-34 has an air volume of 340 m³/h.
Cassette Type(KM)Unit
Model
ltem |
FP-300KM |
FP-400KM |
FP-500KM |
FP-600KM |
FP-800KM |
FP-1000KM |
FP-1200KM |
FP-1400KM |
Standard Air
Volume(m³h) |
HIGH |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
| MEDIUM |
383 |
510 |
638 |
765 |
1020 |
1275 |
1530 |
1785 |
|
| LOW |
255 |
340 |
425 |
510 |
680 |
850 |
1020 |
1190 |
|
Cooling Capacity(W) |
HIGH |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
Heating Capacity(W) |
HIGH |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
|
Dimension |
A |
670 |
710 |
960 |
960 |
1060 |
1060 |
1060 |
1060 |
|
| K |
470 |
610 |
860 |
860 |
960 |
960 |
960 |
960 |
|
Applications:
JETEX offers a range of high-quality Fan Coil Units suitable for various application occasions and scenarios.
The Fan Coil Units are equipped with high-purity Copper Tubes and Aluminum Cooling Fins in the coil, ensuring effective heat transfer and optimal cooling efficiency. The Single Phase Capacitive Motor enhances the overall performance of the unit, providing consistent airflow for a comfortable environment.
FAQ:
Q: What is the brand name of the Fan coil unit?
A: The brand name of the Fan coil unit is JETEX.
Q: Where is the Fan coil unit manufactured?
A: The Fan coil unit is manufactured in Guangzhou, China.
Q: What are the available model numbers for the Fan coil unit?
A: The available model numbers for the Fan coil unit range from FP-300KM---FP1400KM.
Q: Is the Fan coil unit suitable for residential use?
A: Yes, the Fan coil unit is suitable for both residential and commercial use.
Q: Does the Fan coil unit come with a warranty?
A: For information regarding warranty, please refer to the product documentation or contact customer support.
