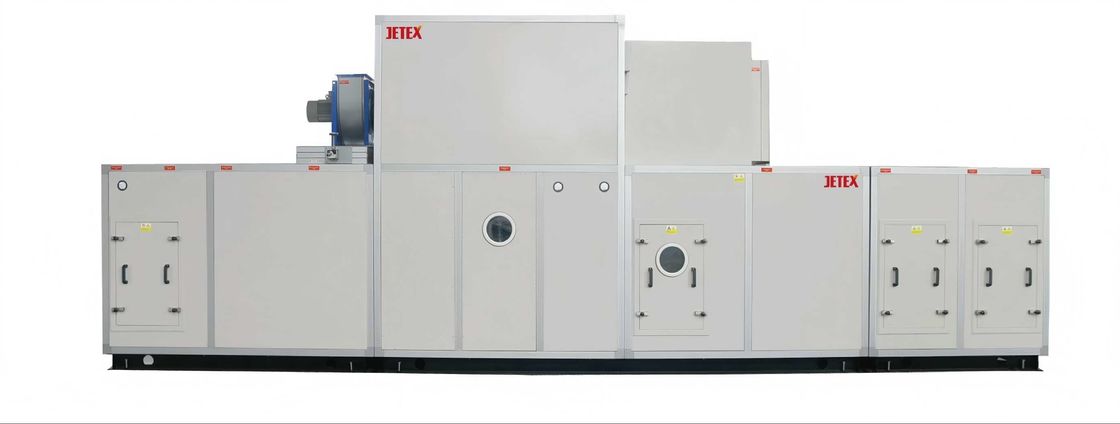

Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries
Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries
  • Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries
  • Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries
  • Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries

Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries

Product Details:
Place of Origin: Guangzhou .China
Brand Name: JETEX
Certification: C R A A Certification，ISO 9001 Quality
Model Number: JD Series
Detail Information
Place of Origin:
Guangzhou .China
Brand Name:
JETEX
Certification:
C R A A Certification，ISO 9001 Quality
Model Number:
JD Series
Trading Information
Minimum Order Quantity:
1
Supply Ability:
1000+
Product Description

         A rotary wheel dehumidifier, also known as a desiccant dehumidifier, uses a rotating wheel filled with a desiccant material to remove moisture from the air. The wheel rotates slowly, continuously exposing different sections to incoming humid air, which is then dried as the desiccant absorbs the moisture.


       Structure of the Rotary Dehumidifier:

  • Desiccant Material:Moisture Removal:Regeneration:Continuous Operation:
    The core component is a rotating wheel impregnated with a desiccant material, often silica gel, which has a high capacity to adsorb water.
    Characteristics of  the core competent- Wheel

    The dehumidifier adopts the world-renowned high-efficiency rotary wheel patented by Japan’s Seibu Giken, the most

    Famous rotary wheel manufacturer. Its dehumidification capacity is 20%~30% higher than other silica gel rotors. The rotary wheel can be cleaned with water to remove dust and minor oil stains, with a service life of over 10 years.


Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries 0


JETEX JD Series Technical Performance Parameters



Model		 Treated Air Regenration Air
Regeneration
Heating Flow
(Kw)		 Rated Dehumidification Capacity

Rated Air
Flow
(m³/h)
Fan Motor
Power
(Kw)
Residual
Pressure
(Pa)
Rated Air
 Flow
(m³/h)
Fan Motor
Power
(Kw)
Residual
Pressure
(Pa)
Air Treatment Inlet
Working Cordtion		 DB13℃
/RH95℃
  (kg/h)
Air Treatment Inlet
Working Condition		   DB23℃
/RH60℃
  (kg/h)
Parameter Table of Low - dew - point Rotary Dehumidifier (Unit Dew - point Temperature: - 40℃)
JD-06K 600  0.18  300  200  0.18  300  8  4  3.35
JD-10K 1000  0.37  300  340  0.18  350  13  6.4  5.2
JD-15K 1500  0.55  350  500  0.18  250  20  11.2  9.84
JD-20K 2000  1.1  400  670  0.37  350  26  14.5  12.2
JD-25K 2500  1.5  420  840  0.55  230  33  17.2  14.25
JD-30K 3000  1.5  500  1000  0.55  310  39  22.1  18.54
JD-40K 4000  2.2  400  1340  0.55  180  52  29  24.2
JD-50K 5000  2.2  380  1670  0.75  400  65  36.8  31.5
JD-60K 6000  4  600  2000  0.75  250  78  43.4  36.4
JD-70K 7000  4  650  2340  0.75  150  91  49.8  40.7
JD-80K 8000  4  380  2670  1.5  550  104  58.9  50.4
JD-100K 10000  5.5  400  3340  1.5  300  130  72.4  60.6
JD-120K 12000  7.5  420  4000  2.2  300  155  82.5  68.4
JD-150K 15000  7.5  400  5000  3  400  194  108.5  90.9
JD-180K 18000  7.5  400  6000  4  430  233  126  104.8
JD-200K 20000  11  400  6670  5.5  680  259  144.7  121.2
JD-220K 22000  11  400  7340  5.5  450  284  156.6  130.68
JD-250K 25000  11  400  8340  5.5  310  323  180.9  151.5

Applications:


1. Industrial, Scientific Research, Military and Municipal Engineering


Our Successful Cases

Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries 1

Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries 2Jetex High Efficiency Desiccant Rotary Dehumidifiers For Pharmaceutical And Food Industries 3
